Feature List
On-Board Diagnostics
The AXON is an advanced diagnostic tool, connected to the vehicle diagnostic connector.
The AXON supports all vehicles 1996 and newer, providing information from the vehicle BUS. One of the pieces of information provided is DTC - Diagnostic Trouble Code, which can be monitored via the internet on your home personal computer. Our database of DTC codes will automatically provide you with decoded information. Diagnostic reports will alert you whenever DTC codes or other alerts are present in your vehicle.
The AXON’s main function is to communicate with the vehicle's electronic controllers, retrieve the vehicle parameters and GPS location, and store all information in our database. The AXON can communicate with numerous vehicle protocols and standards including CAN, J-1850, J-1708, J-1939 and K-line, allowing it to be installed in virtually any vehicle on the market. When installed, the AXON automatically identifies with the vehicle’s BUS and starts transmitting data.
AXON will allow you to send commands to your vehicle as well.

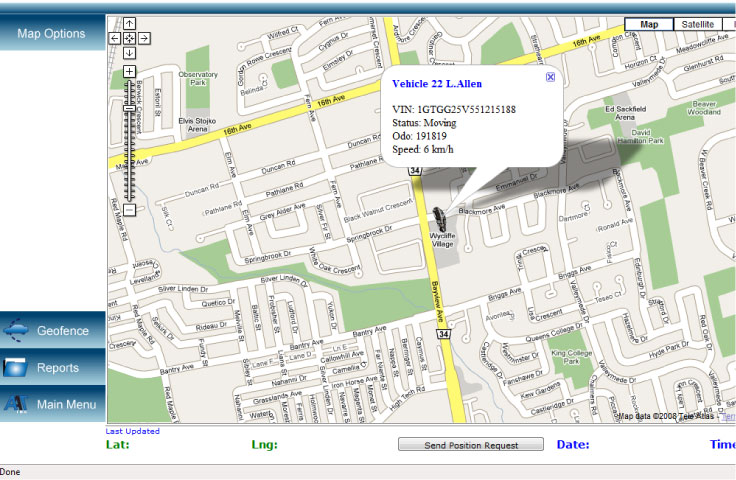

Real Time Map Location
- Our web-based application allows you to locate your vehicles on an interactive map and view all vehicle information. This information can be provided to you at any moment from your own personal computer via an internet connection.
- By selecting 'Map' the user will have an interactive map that displays each car's position in real-time.
- Data from each vehicle is updated and sent regularly. The user may also query for present position at any moment by pressing the 'send position request' button directly under the map. In addition, the AXON emits a signal on certain events such as ignition on/off and PRNDL movement. The mapping system also helps notify the user of alerts occurring in the vehicles.

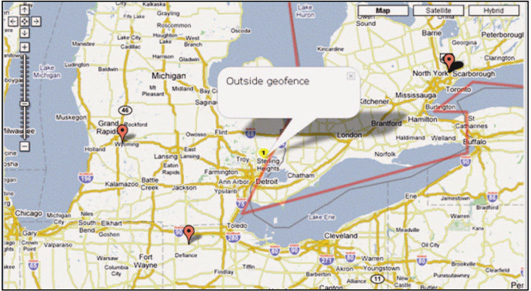

Geo-Fencing
Draw a boundary to receive notification when car drives beyond its permitted zone.
- Immediately discover when a driver is off-track and wasting company time and money. Or simply be alerted when a border is crossed. The Geo-Fencing option allows vehicle managers to set boundary limits for their fleet of vehicles.
- The boundary is easily drawn on the map by clicking and dragging the markers. Setting the boundary in this fashion allows for a very detailed barrier to be set-up. Once any vehicle crosses it’s designated boundary the alert is signaled and the information is reported. AAT records the date and time the geo-fence was crossed.
Remote Commands
Send commands back to your automobile from any PC with an internet connection.
List Of Commands AXON Can Send To vehicle
Besides retrieving the vehicle parameters, the AXON can also SEND commands to your vehicle. Possible commands are:
- Lock/Unlock doors
- Reset Dashboard Mileage Alert
- Change message transmission time
- GGA request
- Position request
At this moment, from the list of commands, only 'Position Request' is enabled for our customers using our Web application. Other commands should they be desired can be implemented but are password protected, accessible only by AAT, and can be applied only on customer request.
Remote Lock/Unlock Doors using The AXON
Save your time in case of accidentally locked doors by simply making a telephone call. Remote door-lock may also be performed to reduce theft and recover stolen vehicles. Available on selected vehicles only.
Reset Mileage Alert
Regularly, every 5000 miles, vehicles will send a mileage alert, requesting maintenance. Mileage alert will be stored into database and can be cleared using the Web application.
Vehicle Immobilization
Please contact us for more details.
Changing Message Transmission Time
The AXON sends periodic messages every 1-5 minutes. This value can be changed by sending command
"Change Message Trasmission Time". The user may choose to receive data from each vehicle at any time interval, up to the minute. For more details, contact us.
Send GGA Request
All relevant GPS information can be updated by sending the GGA request command. Please contact us for more details.
Send Position Request
Position of the vehicle by default is updated every 1-5 minutes. At any time the vehicle position can be updated by sending command
"Send Position request" to the vehicle, from your personal computer.

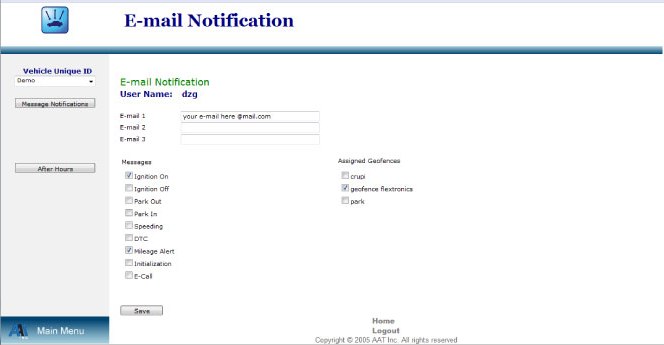

Automated Alerts - Set-up alerts to be notified by email, phone, or text when specific actions occur.
Numerous alerts can be sent from the vehicle:
- Diagnostic Trouble Code (DTC)
- Telltale (indicators on dashboard, plus Air-Bag deployed)
- Geofence violations
- Maintenance reminders (mileage alert)
- Emergency Calls
Above all, the AXON is designed for the driver’s safety & convenience. As soon as a problem arises within the vehicle the modem will send out an alert signal and notify the dispatcher or centre of user’s choice.
The Unit is manufactured in Canada using approved and qualified automotive grade systems suppliers.

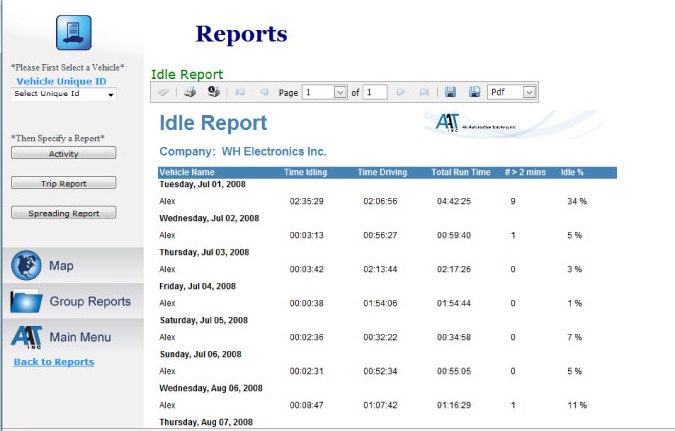

Diagnostics & Detailed Reporting
Monitor your vehicle’s fuel level, speed, or any mechanical failure.
Detailed reporting is provided with each map. This includes information for every vehicle's position, date and time, mileage, fuel level, status of ignition, status of PRNDL, idle period, rpm, max. rpm, speed, max. speed, diagnostic trouble code (DTC), telltale, alerts, IMEI, VIN number, previous trip info.
The user can choose a vehicle from the list of vehicles, and for the selected vehicle they may choose one of the reports:
- Activity: with all driving details from database.
- Trip Report: A visual map with reports per daily basis and per trips.
- Diagnostics: reports of diagnostic messages (DTCs , telltales ,mileage alerts).
Automated Alerts
Any problem that the vehicle’s onboard computer can monitor will be displayed on the Alerts Page so that the user may monitor the vehicle for electrical/mechanical problems or failures.
The date, time, and location of when the automobile’s problem occurred is also provided. Therefore a specific date may be queried as well to see if any problems arose on a particular day.
This section of the web-site is what helps set our unit apart from other normal GPS units and fleet management software.
